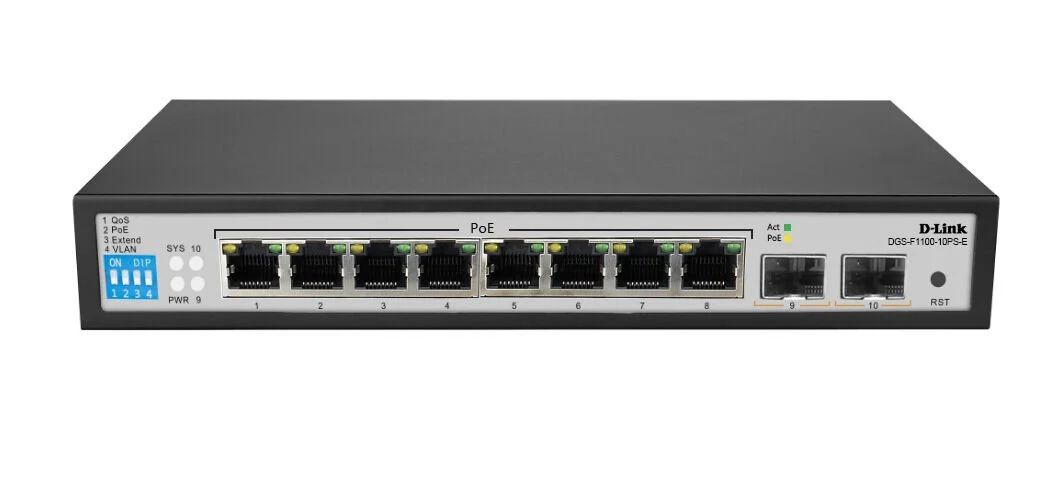

D-Link 10-Port Gigabit PoE Smart Managed Switch with 2 Gigabit SFP Ports (DGS-F1100-10PS-E)
UShs680,000
- Available in multiple configurations,
with or without PoE and fiber support - Fanless design for silent operation
- 6kv Surge Protection
- 8x 10/100/100 BASE-T PoE Ports
(802.3af/at complaint) - 2 Gigabit SFP Ports
Shipping & Delivery
-
Express delivery
Our courier will deliver to the specified address
1-2 Days
From Ugx.15,000
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From Ugx.20,000
-
Warranty 1 year
-
Free 15-Day returns
DGS-F1100-10PS-E is a managed switch designed to meet the requirements of small, medium, and enterprise businesses. DGS-F1100-10PS-E supports multiple PoE standards make it ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.
Product Features
Smart and Flexible Management
Powerful switch management functions can be performed through the web management interface
or through the client-based utility
Gigabit Ethernet Speed
High-speed ports provide the latest Ethernet technology while remaining backward compatible
for connections to older computers and equipment.
IPv6 Ready
IPv6 compliance means that the switches are ready to meet future addressing standards, and are
compatible with both your IPv4 and IPv6 network
| Technical Specifications | |
| General | |
| Model | • DGS-F1100-10PS-E |
|
Interfaces |
• 8 x 10/100/1000BASE-T |
| • 2 x 100/1000 Mbps SFP ports | |
|
Port Standards |
• IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet |
| • IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet | |
| • IEEE 802.3z:1000BASE-X gigabit Ethernet fiber） IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control | |
| • IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering) | |
| • IEEE 802.1q: VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s: MSTP spanning tree | |
| • IEEE 802.1w: RSTP spanning tree | |
| PoE | |
| PoE Standards | • IEEE 802.3af/at |
| PoE Capable Ports | • Port 1-8 can support up to 250m @10Mbps with Extend Enable |
| Power Budget | • 96W (30W max. per port) |
| Uplink Port Settings | |
| From Port | • Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches. |
| To Port | • Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches |
| Network Cables | • UTP Cat. 5, Cat. 5e (100 m max.) |
|
Duplex Mode |
• Full/Half-duplex for 10/100 Mbps |
| • Full duplex for 1000 Mbps | |
| Performance | |
| Switching Capacity | • 20 Gbps |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 8K entries |
| Maximum 64 Byte Packet Forwarding Rate |
• 14.88 Mpps |
| LED’s | |
| Power | ✓ |
| System | ✓ |
| Physical/Environmental | |
| Power Input | • DC:12V 1A |
| Operating Temperature | • 0°C ~ 50°C |
| Storage Temperature | • -40°C to 70°C |
| Operating Humidity | • 10% to 95% relative humidity no condensation |
| Storage Humidity | • 5% to 90% relative humidity no condensation |
| Dimensions (L x W x H) | • 225 x 120 x 35 mm |
| Software | |
|
Shortcut function |
• AI VLAN |
| • AI Extend (port 1-8 support transmission up to 250 meters @ 10mbps) | |
| • AI QOS (Video priority) | |
|
L2 Features |
• 802.3ad Link Aggregation |
| • Port Control | |
| • Jumbo Frame | |
|
VLAN |
• Support 4K VLAN |
| • Support 802.1Q VLAN, Port VLAN, Voice VLAN | |
| • Support GVRP, Support MAC VLAN, IP VLAN | |
|
MAC address table |
• Comply the IEEE 802.1d standard |
| • Support MAC address learning and aging automatically | |
| • Support static, dynamic, filter address table | |
|
Safety |
• Based on user rating management and password protection |
| • Support based on the port number, IP address, MAC address restrictions on user access | |
| • ICMP-echo, DoS protection | |
| • Support DHCP Snooping, DHCP attack protection | |
| • Support port security, port isolation | |
|
Access control (ACL) |
• Support L2(Layer 2) ～L4(Layer 4) packet filtering function |
| • Support port mirroring, port redirection, flow rate limit, QoS re- marking | |
|
Multicast |
• Support IGMP v1/v2/v3 Snooping |
| • Support static multicast | |
| • Support MLD v1/v2 Snooping | |
|
QoS |
• Support 8 port queue |
| • Support port priority, 802.1p Quality of Service, DSCP priority | |
| • Support SP、WRR、WFQ Priority scheduling algorithm | |
|
Spanning Tree |
• Support STP (IEEE 802.1d) ，RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol |
| • Support loop protection | |
|
Web-based GUI and maintenance |
• Support Web-based GUI |
| • Support CLI (Telnet, SSH V1/V2) | |
| • Support SNMP V1/V2/V3 | |
| • Support LLDP | |
| • Support IP Source protection DoS protection | |
| • Support CPU monitor memory monitoring | |
| • Support system log | |
| • Support cable testing | |
